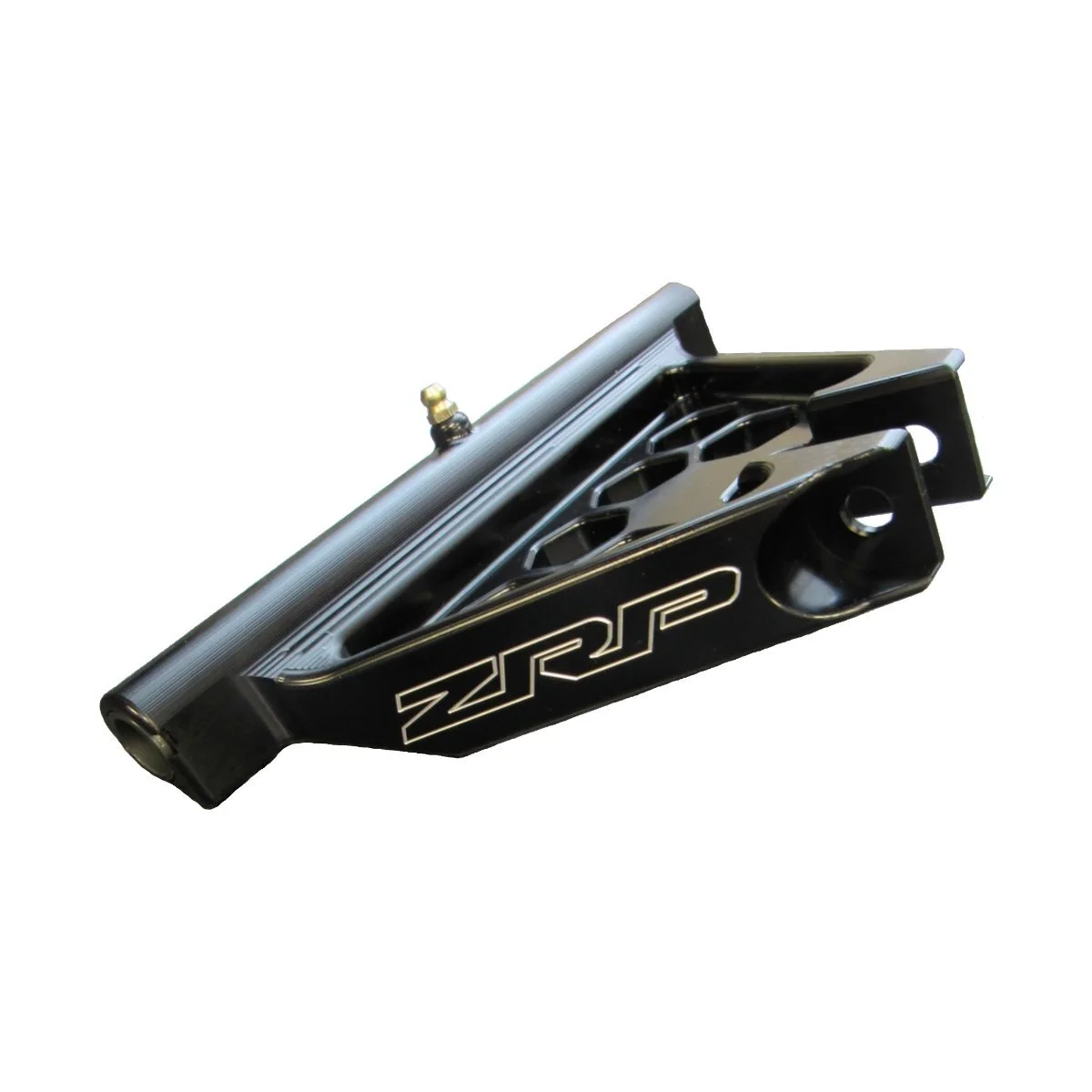

ZMotion 3/4" Offset Rear Linkage

Offsetting the rear arm on XM & Gen 4 sleds is a popular mod that adds numerous benefits especially when hillclimbing.

Our riders testing this product have been able to let their limiter strap out to the stock position, enough to gain nearly 1" of additional front shock travel while maintaining ski pressure, which is a huge advantage in all riding situations!

The ZMotion works by using the offset geometry to control transfer by making it more progressive. What this means is the rear suspension now has enough spring rate and rebound to keep you from getting stuck in that semi-wheelie position the stock rear suspension likes to get in. Keeping the skis down is usually done by tightening the springs up and tightening the limiter straps, both of which make for a harsher, unpleasant ride.

The ZMotion rear scissor is superior to just simply moving your stock scissor back because it maintains proper geometry of your suspension components relative to each other.
What that means is your sled will work and ride better in all conditions.


And for those that are conscious of every gram, the ZMotion link is also 40g lighter than stock.



For 174" see: 174" ZMOTION + RAIL BRACE

For new Gen 4 see: 2017+ GEN4 ZMOTION W/ RAIL BRACE
